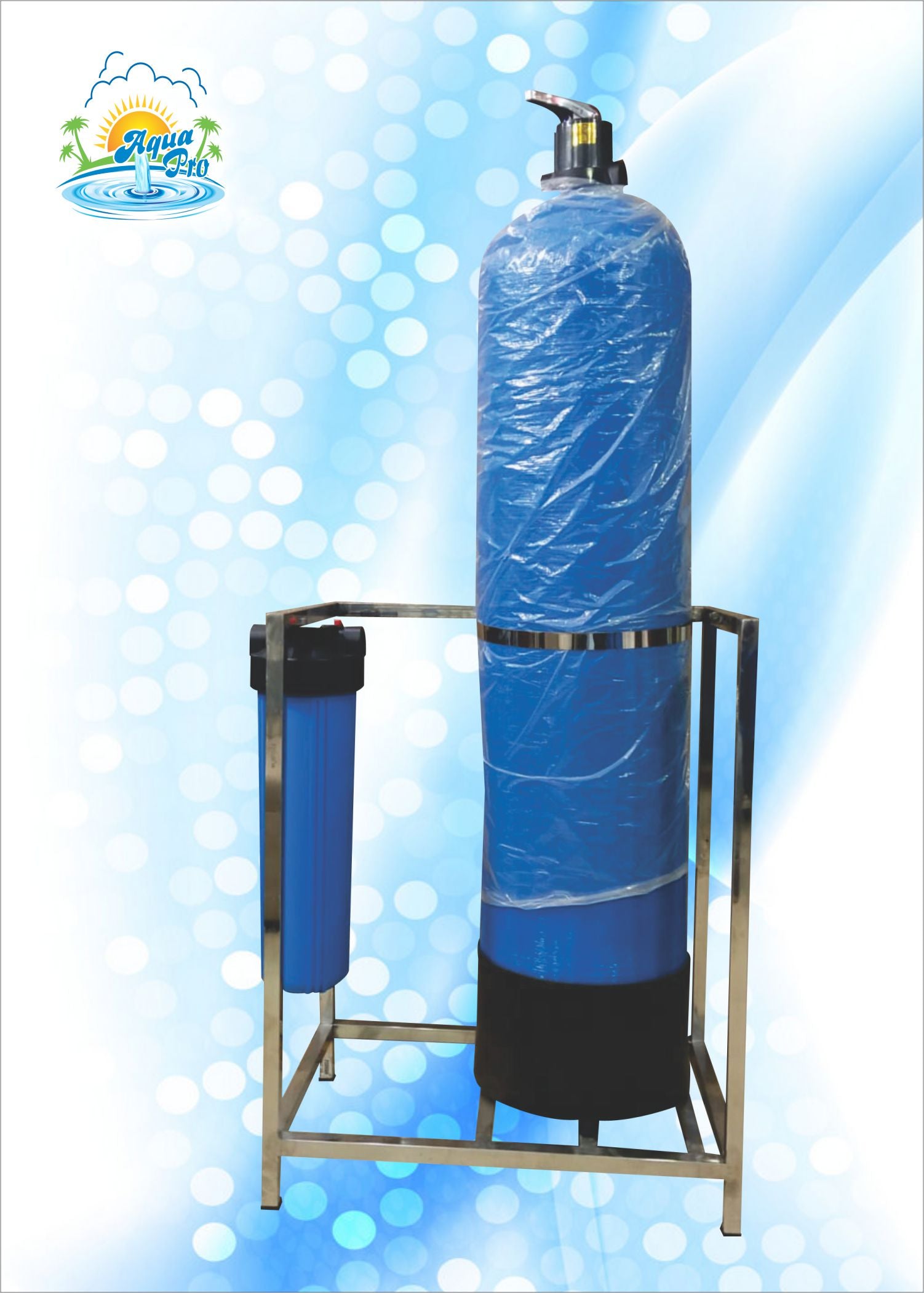

Whole House Water Filter

SILICA SAND FILTER :

Function (To Remove Physical Contamination & Suspended Particles)
Quantity 01 No

Flow Rate 900 LPH
Pressure Drop 4 to 6 psi
Max Working Pressure Bar 8.5
Min Working Pressure Bar 1.3
Test Pressure Bar 10.5
Max Working Temperature 50 C
Sand Filter Size 150 PSI  10" x 54" Material of Filtration Vessel FRP (Fiber Reinforced Plastic)
Inlet & Outlet Size 1" Filtration Media (40 kg)  Silica Sand/Gravel
Valve Operating Mode Manual
Media Size 1 mm & 0.5 mm Mesh
Media Replacement time 2 Year

 JUMBO SEDIMENT FILTER

05  MICRON
Jumbo sediment filter is a mainline filtration system, specially designed to filter sediment particles
like silt, miner scale, dust, rust, sand etc, at a very high flow rate of up to 20 LPM with a filtration
rating of 05 to 01 micron. It is the ideal remedy for all problems of water filtration for entire
Houses, Hotels, Swimming pools, Laundries etc. Quantity 02 NO’s
Make Taiwan
Maximum Flow Rate 05 GPM
Maximum Pressure 90 psi
Type of Cartridge Polypropylene fiber
