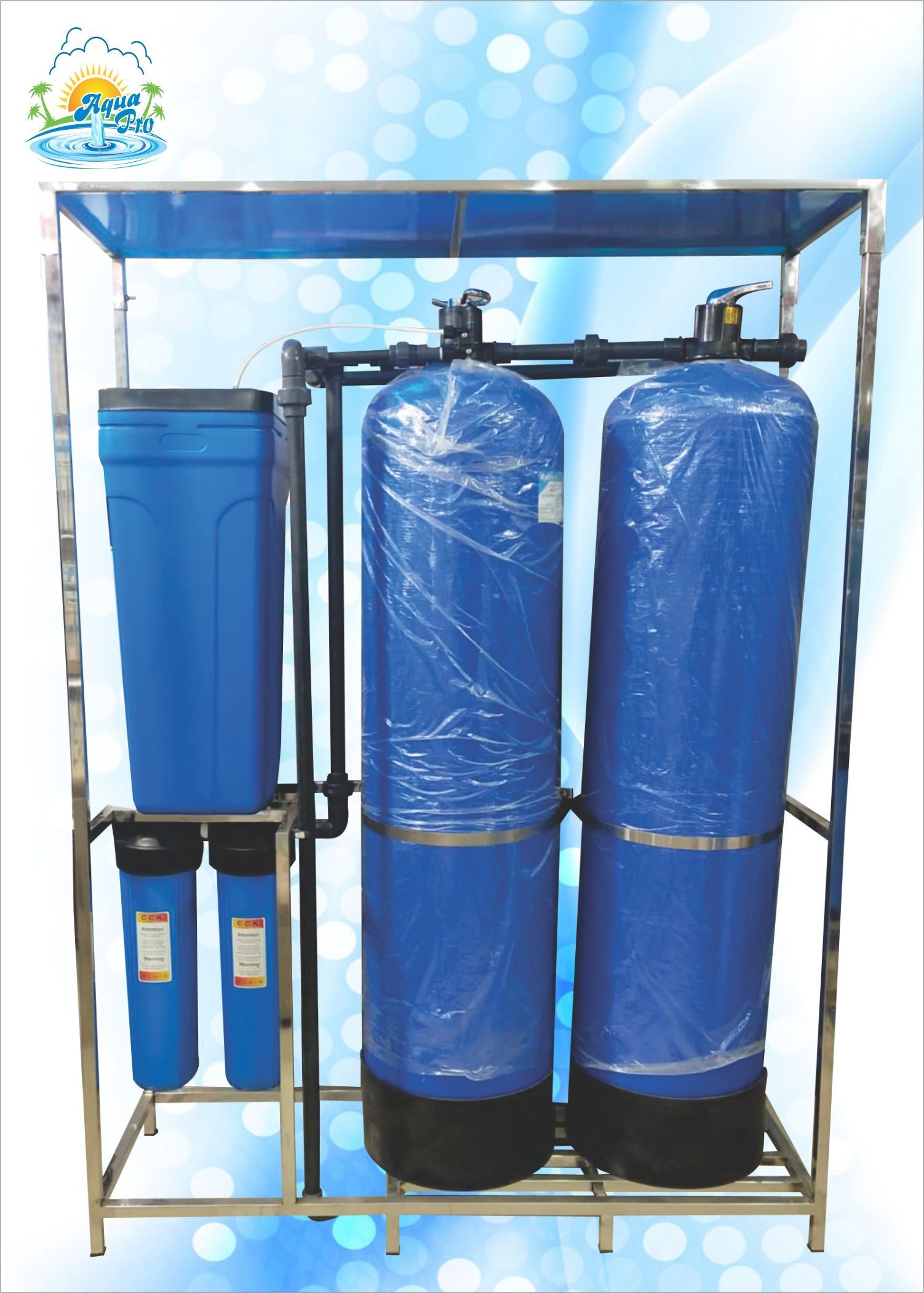

Water Softener 13x54

SILICA SAND FILTER :
Function (To Remove Physical Contamination & Suspended Particles)
Quantity 01 No

Flow Rate 3000 LPH
Pressure Drop 4 to 6 psi
Max Working Pressure Bar 8.5
Min Working Pressure Bar 1.3
Test Pressure Bar 10.5
Max Working Temperature 50 C
Sand Filter Size 150 PSI  13" x 54" Material of Filtration Vessel FRP (3 Layer Fiber Reinforced Plastic)
Inlet & Outlet Size 1" Filtration Media (75 kg) Silica Sand
Valve Operating Manual
Media Size 1 mm & 0.5 mm Mesh
Media Replacement time 2 Year


Softener Filter Ion-Exchange Resin

Function (The process ion-Exchange Occurs Through the resin beads. The Negative Charged
Molecules, Calcium & Magnesium are attracted to the positive bound of the resin.)
Quantity 01 No
Flow Rate 3000 LPH
Pressure Drop 3 to 4 psi
Min Working Pressure Bar 1.3
Max Working Bar 8.5
Test Pressure Bar 10.5
Max Working Temp 50 C

Size of Vessel (150PCI 13" x 54" Material of Vessel FRP (Fiber Reinforced Plastic)
Inlet & Outlet Size 1" Softener Media Ion-Exchange Resin
Media  Resin Food Grade 25/50 Ltr
Manual Softener Valve
Softener  control valve is been used to control back wash & REGARNATION
cycle for the Media filters & to keep water treatment system working at maximum
performance at 24 hour. per the raw water quality & usage of water.

JUMBO SEDIMENT FILTER

05  MICRON
Jumbo sediment filter is a mainline filtration system, specially designed to filter sediment particles
like silt, miner scale, dust, rust, sand etc, at a very high flow rate of up to 3000 LPH with a filtration
rating of 05 to 01 micron. It is the ideal remedy for all problems of water filtration for entire
Houses, Hotels, Swimming pools, Laundries etc. Quantity 02 NO’s
Make Vaitnam
Maximum Flow Rate 05 GPM
Maximum Pressure 90 psi
Type of Cartridge Polypropylene fiber
Dia of Cartridge 2 ½" Length 20"
Inlet / Out Let 1” Housing Dia 4" Filtration Micron Rating 05 Micron
Housing Material Polypropylene
Replacement Cartridge Cartridges need replacement after 1 to 2 month.
